PRODUCT DETAIL :
The pump type ETL (OH5) vertically inline mounted, close coupled, radial split case,
single stage, single suction, heavy duty centrifugal process pumps. The design complies
with the latest edition of the American Petroleum Institute standard ‘Centrifugal Pumps
For General Refinery Services’, also known as API 610/ ISO13709.
The inline configuration is a compact pumping solution with mounting the impeller to an
extended motor drive shaft presents a very compact pumping solution. The ETL (OH5)
offers a space saving footprint and eliminates expensive baseplates. (This pump is also
available in long coupled pump type ETLS (OH3) for high temperature applications)
FEATURES:
ㆍAccording API 610 (OH5)
ㆍDiffuser design reduces radial loads
ㆍReduces minimum flow requirements
ㆍHigh efficiency at any duty
ㆍAlignment free construction
ㆍIn line suction & discharge
ㆍSpace saving construction
ㆍStable head characteristics
ㆍMeets API nozzle load requirements
ㆍAccommodates API 682 seal systems
Click here to see ETL (OH5) API 610 diffuser pump technology (BEP)
PRODUCT DETAIL :
The pump type ETLS (OH3) vertically inline mounted, flexible coupled, radial split case,
ingle stage, single suction, heavy duty centrifugal process pumps. The design complies
with the latest edition of the American Petroleum Institute standard ‘Centrifugal Pumps
For General Refinery Services’, also known as API 610/ ISO13709.
The inline configuration is a compact pumping solution that eliminates the need for an
expensive baseplate saving valuable floor space. (This pump is also available in close
coupled execution, pump type OH5- ETL for very compact applications)
FEATURES:
ㆍAccording API 610 (OH3)
ㆍDiffuser design reduces radial loads
ㆍReduces minimum flow requirements
ㆍHigh efficiency at any duty
ㆍAlignment free construction
ㆍin line suction & discharge
ㆍSpace saving construction
ㆍStable head characteristics
ㆍMeets API nozzle load requirements
ㆍAccommodates API 682 seal systems
PRODUCT DETAIL :

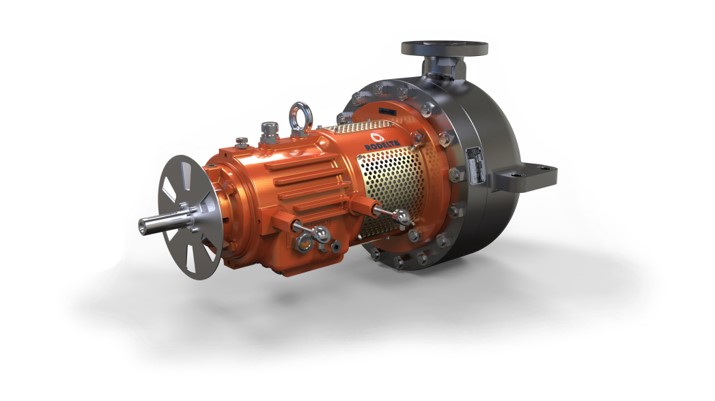

The pump type HZC ( OH2 ) is a series of horizontal overhung centerline mounted, single stage,
single suction heavy duty centrifugal pumps with diffuser and volute design casings.
The design of HZC complies with the latest edition of the American Petroleum Institute standard
‘Centrifugal Pumps For General Refinery Services’, also known as API 610/ ISO13709. Satisfying
this standard, the HZC meets the high level performance requested by refineries and
petrochemical industries.
FEATURES:
ㆍSingle stage overhung design pump – AP1610 ( CH2 )
ㆍHeavy duty, centerline mounted, radially split casing
ㆍBack-pull out unit design. Pump internals can be taken out
without disconnecting suction/delivery piping or moving driver.
ㆍThe casing is self-venting due to the centerline discharge
ㆍThe impeller is a closed radial design, dynamically balanced
and incorporates a wear ring on either side of the impeller.
ㆍDiffuser design, reduces radial loads, reduces minimum flow
requirements, high efficiency at any duty
ㆍDouble volute design, to reduce radial loads
Click here to see The Rodelta HZC (OH2) API 610 material executions
PRODUCT DETAIL :
The pump type TAZN (VS4) is a modular single stage centrifugal sump pump that uses hydraulic components from our Z range which comply with API 610 (ISO 13709). This pump offers solutions for thin or slightly contaminated liquids. For less stringent “NON API” applications this versatile unit can be supplied with a wide variety of competitive hydraulic options. See our pump types TAN, TAF, TAE pumps for details.
FEATURES:
